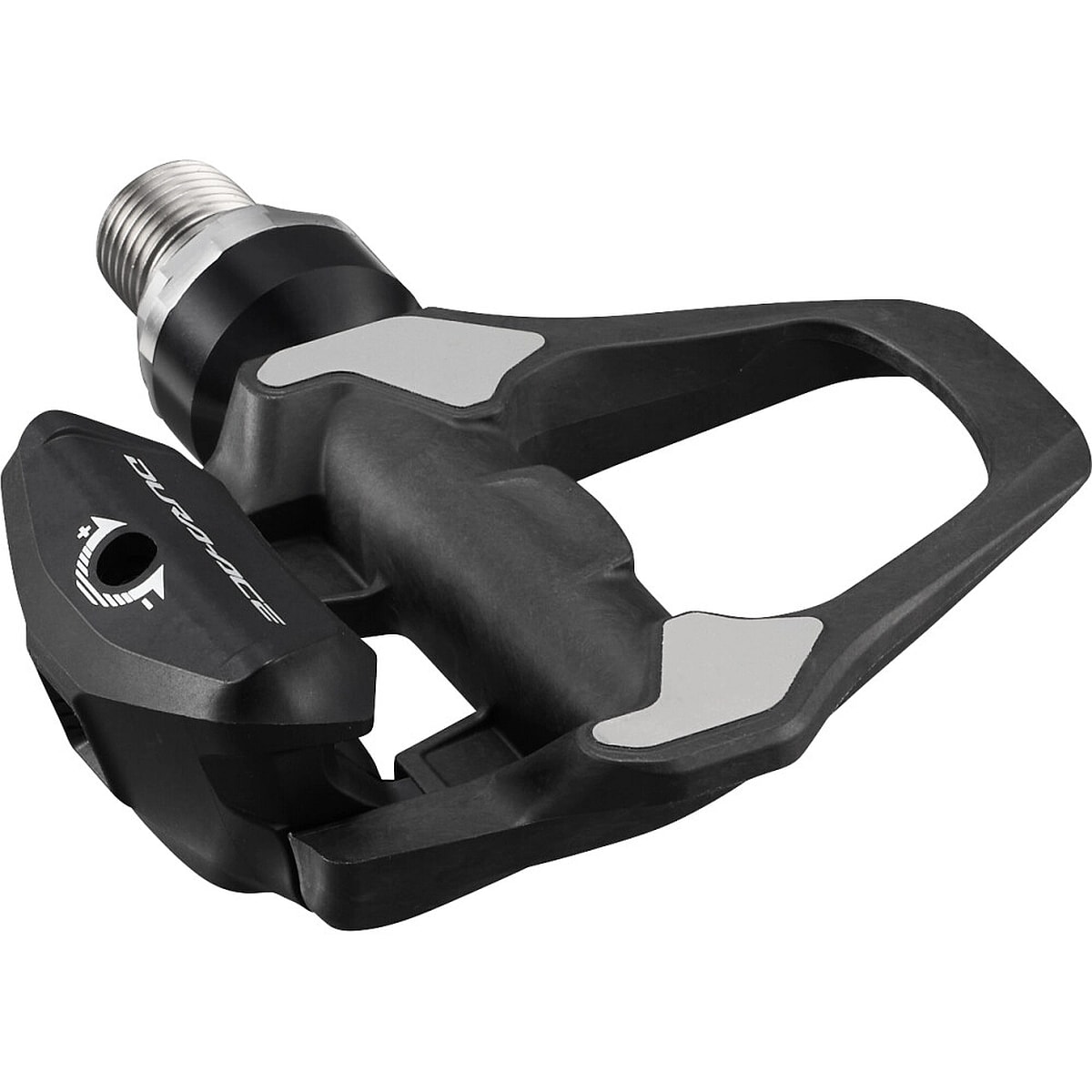

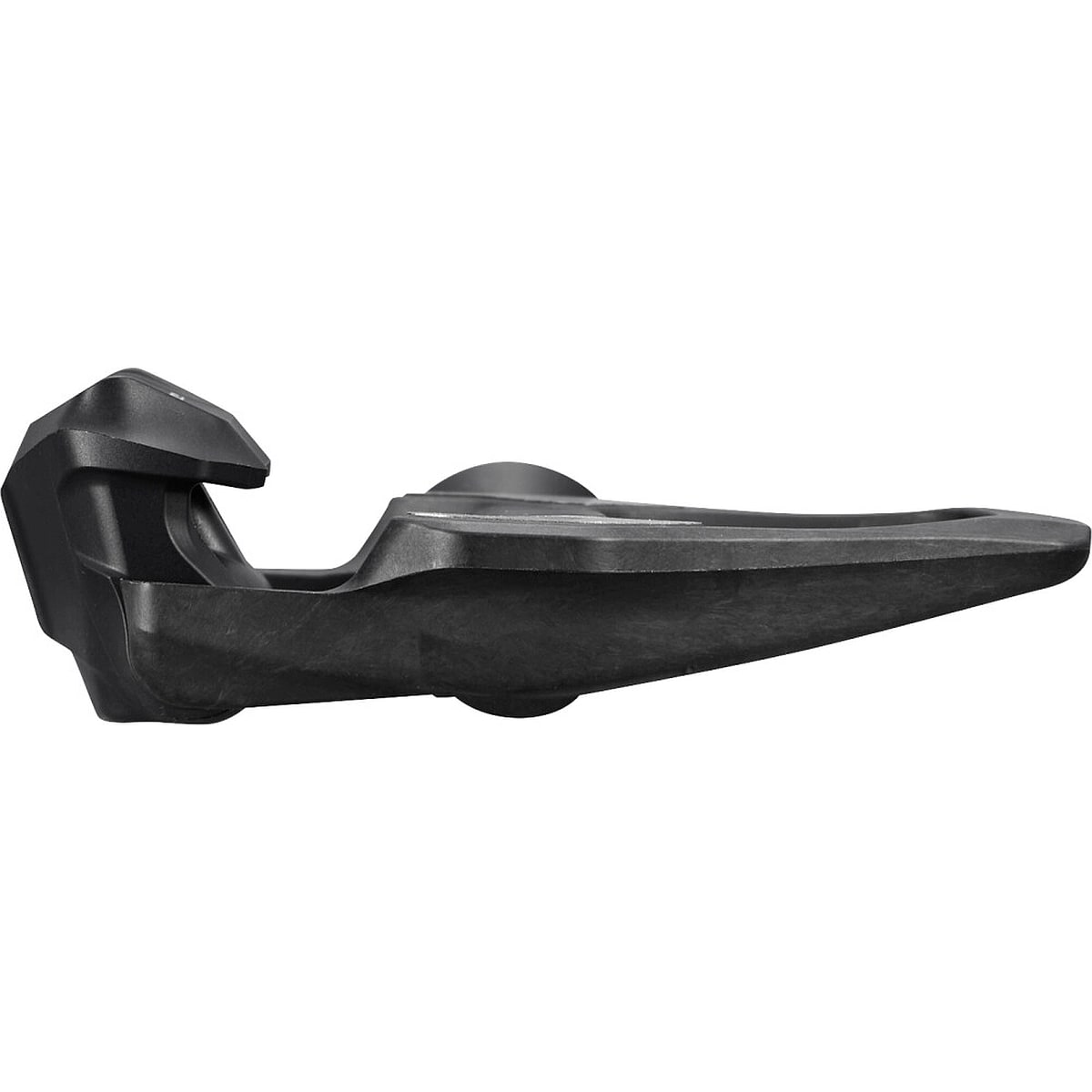

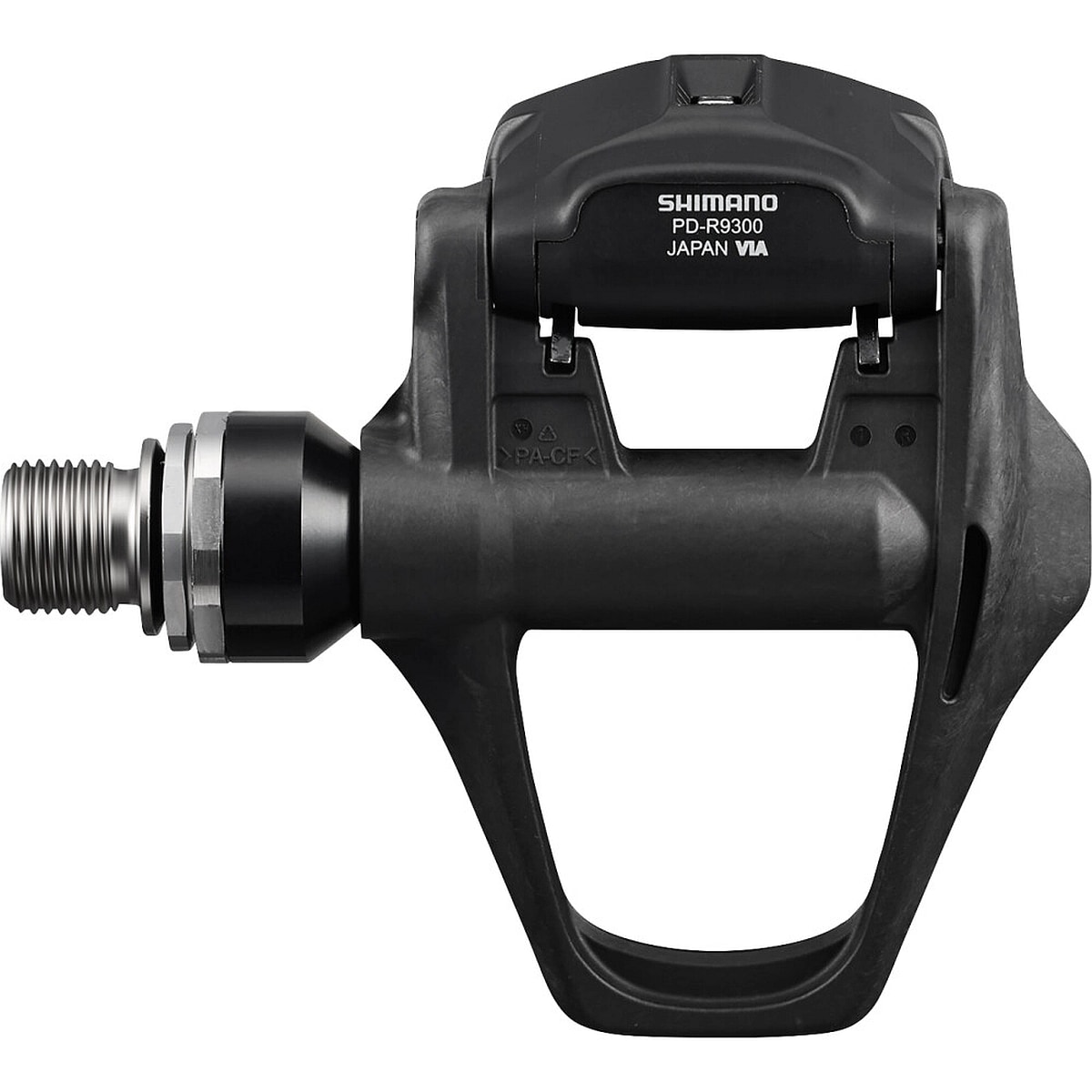

SHIMANO DURA ACE PD-R9300 SPD-SLR Pedal Set

With the PD-R9300, SHIMANO introduces the next generation of their road bike clipless pedals: The SPD-SLR platform offers a particularly low stack height, which brings your feet closer to the pedal axle than is the case with SPD-SL pedals. As a result, the DURA ACE PD-R9300 are designed to provide particularly high pedalling stability and improved power transfer.

Furthermore, the further developed platform offers a larger engagement zone and a smaller engagement angle, which allows for faster and more intuitive engagement.

Compared to the PD-R8200, SHIMANO uses bearings with a visibly larger diameter in the PD-R9300, which makes the DURA ACE pedals up to 11% more torsionally rigid and thus able to transfer your power even more directly into your bike's drivetrain. A heat-treated axle and special bearing seats are also designed to reduce the rotational resistance of the DURA ACE pedals by up to 53 per cent compared to their ULTEGRA counterpart. The PD-R9300 thus position themselves as the spearhead of SHIMANO road pedals.

Details:
• SHIMANO road bike pedals with further developed SPD-SLR technology
• Only compatible with SPD-SLR cleats (see accessories below)
• Lower stack height than SPD-SL pedals
• Enables high pedalling stability and efficiency
• Larger engagement zone and smaller engagement angle
• Developed for faster and more intuitive engagement
• Adjustable entry and release tension
• Large bearings for a torsionally rigid construction with optimal power transfer
• Very low rotational resistance thanks to a special axle and bearing seats
• Extra-wide contact surface for high stability and efficiency

Technical details:
• Intended use: Road
• Series: DURA ACE
• Model: PD-R9300
• Clipless pedal system: SPD-SLR (single-sided)
• Material pedal body: carbon composite
• Material pedal spindle: nickel cromoly steel
• Stack height: 12.5 mm
• Engagement angle: 10.5°
• Weight: approx. 227 g (pair)

In the box:
• 1 pair of SHIMANO ULTEGRA PD-R9300 SPD-SLR pedals
• 1 pair of SHIMANO CL-SL110 cleats, yellow, with ± 3° angular float


Note:
These pedals are NOT compatible with SPD-SL cleats.

Compatible SPD-SLR cleats in the Rose range:
• SHIMANO CL-SL110 SPD-SLR cleats ± 3° (prod. code: 1663560001)
• SHIMANO CL-SL100 SPD-SLR cleats ± 0° (prod. code: 1663550001)
