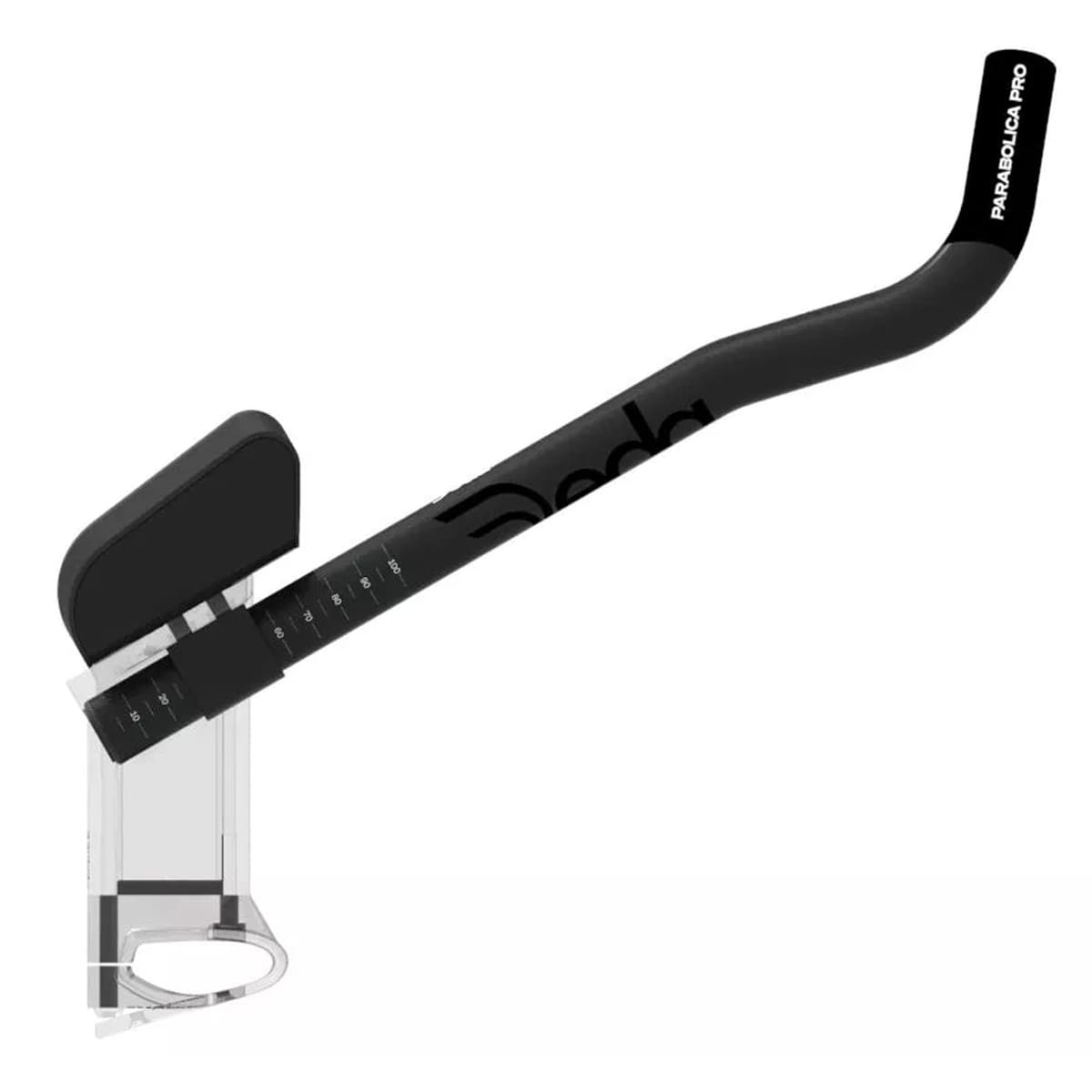

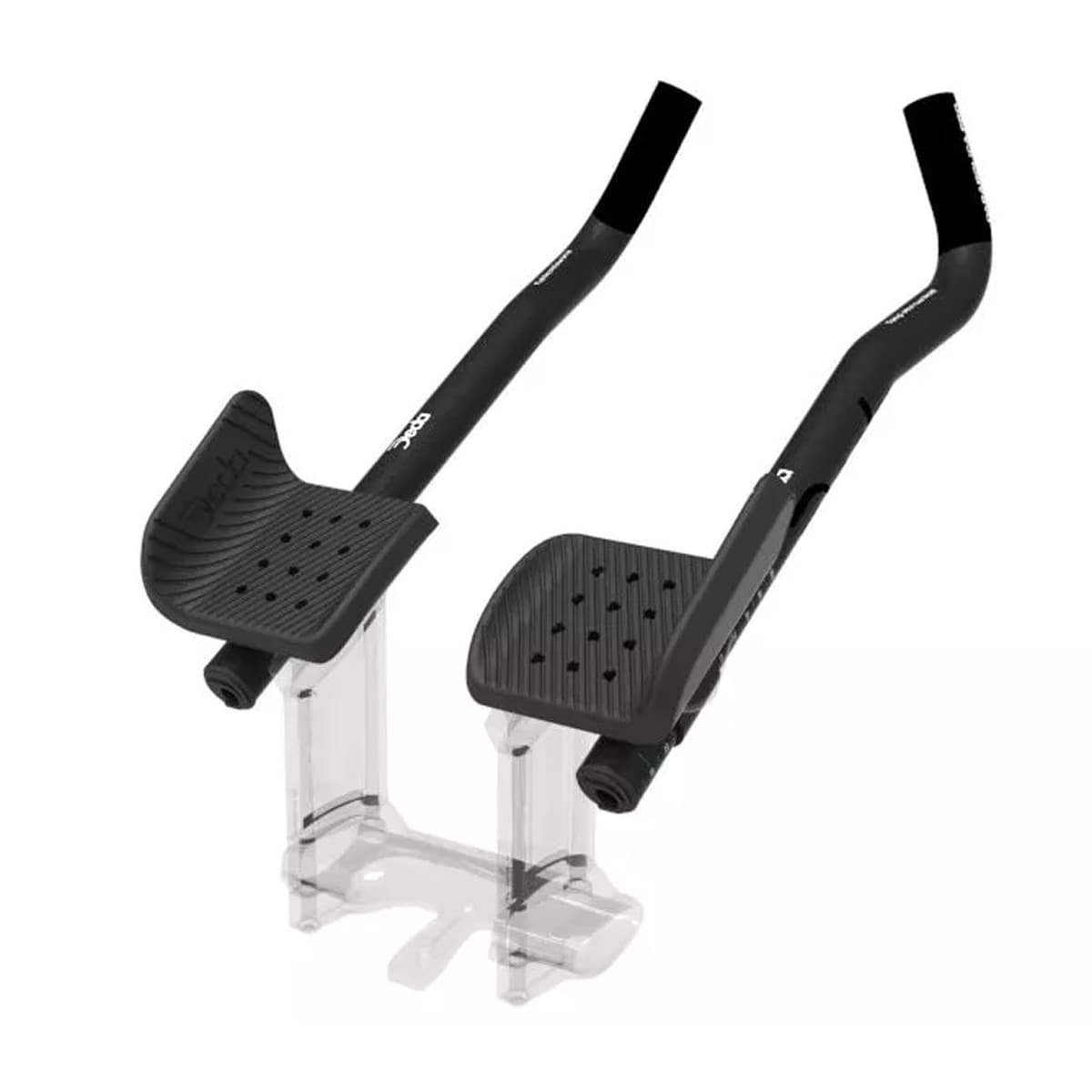

Deda Parabolica Pro Kit for TT 314 clip-on handlebar adapter

The Parabolica Pro Kit from Deda has been specially developed for use with the separately available TT 314 Clip-On handlebar adapter for Rose Shave.

Details:
• Handlebar attachment for use with the separately available Deda TT 314 clip-on handlebar adapter for the Rose Shave (prod. code: 1637090001)
• Extension length and arm rest spacing can be customised
• Spacers available separately

Technical details:
• Material: 6061 aluminium
• Permissible rider’s weight: max. 110 kg (incl. backpack)
• Compatible Rose handlebar: Rose Shave Cockpit (only with optional Deda TT 314 Clip-On Handlebar Adapter for the Rose Shave, prod. code: 1637090001)
• Extension length: approx. 385 mm
• Outer diameter extensions: Ø 24 mm
• Length adjustment extensions: approx. 315 mm (min.) – 385 mm (max.)
• Extension height (measured from handlebar centre to extension tip, with 60 mm spacer): approx. 265 mm (min.) – 315 mm (max.)
• Arm rest width: approx. 95 mm
• Arm rest adjustment range (width): 115 mm – 165 mm
• Arm rest offset (forwards/backwards): +/- 20 mm
• Weight: approx. 910 g

In the box:
• 1 Deda Parabolica Pro Kit


Accessories required for mounting on the Rose Shave Cockpit:
• Deda TT 314 Clip-On Handlebar Adapter for the Rose Shave (prod. code: 1637090001)

Note:
To mount the handlebar attachment, you need the separately available Deda TT 314 clip-on handlebar adapter. The kit does not contain any components for mounting the attachment directly on the handlebars.


Manufacturer: Dedaindustrie S.r.l., Via Leonardo Da Vinci, 19/21/23, 26010 Campagnola Cremasca (CR), Italy, www.dedaelementi.com
